Special Gas Tri-tower Desiccant Dryer

没有此类产品
description

Gas medium: Biogas,Natural gas, Coal bed methane(mash gas), Hydrogen gas, Shale gas, etc.

Anti-explosion degree:  Ex‖BT4 or Ex‖CT4

The inlet temperature of the air: ≤45℃ (The high temperature can be customized)

Working pressure: 0~10MPa (The vessel is designed and manufactured according to the actual pressure)

Cooling type: air-cooled or water-cooled

Ambient temperature: ≤38℃(air-cooled type)

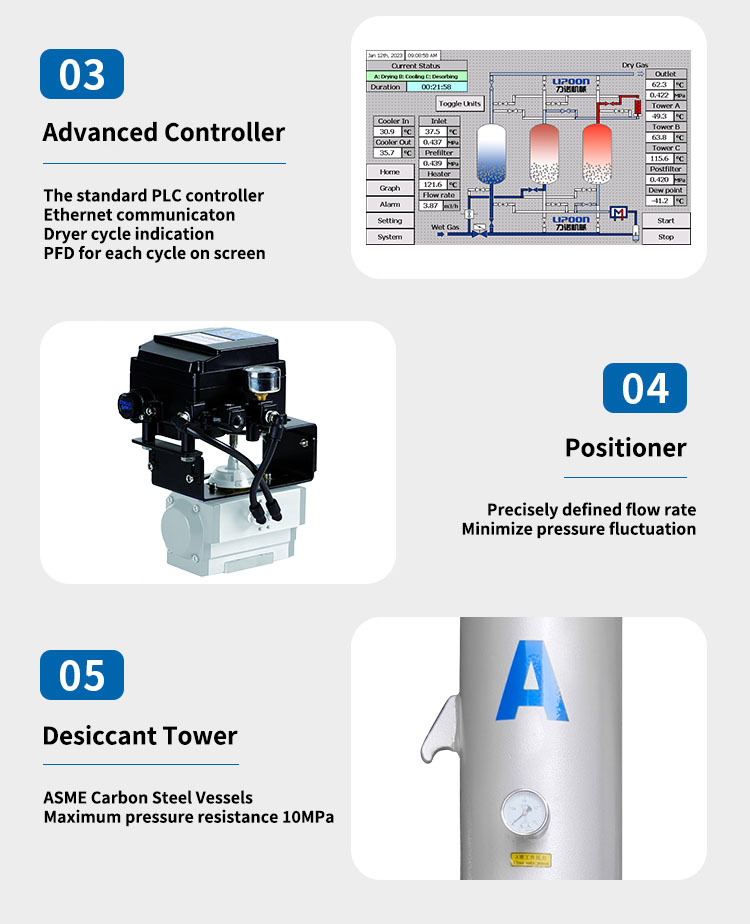

Control method: Siemens PLC Control or Integrated into the DCS
Intake oil content: ≤0.01 ppm
Pressure dew point: -20 to -40 ° C (-70°C is optional)
Cooling water temperature: ≤32 °C,
Cooling water pressure: 0.2~0.4MPa
Cooling water: Industrial circulating water
Power supply: 220V/50HZ (auxiliary electric heating 380V/50Hz),
Installation method: no basic installation in the room

Special pressure, temperature, and dew point are custom-made.

型号

处理量Nm3/mi

L长度 n mm

W宽度 mm

H高度 mm

空气接口管径

冷却水量T/H

重量 kg

LNXY-80

80

3500

1900

2900

DN125

32

4700

LNXY-100

100

3700

2100

3000

DN150

40

6000

LNXY-120

120

3800

2300

3100

DN150

47

6800

LNXY-150

150

4500

2400

3200

DN200

59

8300

LNXY-200

200

4500

2800

3400

DN200

78

11100

LNXY-250

250

5000

3200

3600

DN250

98

14500

LNXY-300

300

5400

3400

3700

DN250

117

17000

LNXY-400

400

5800

3600

4000

DN300

156

22000

LNXY-500

500

6200

3900

4300

DN350

186

28000
